his article explains how to installation the ISUZU 6WF1-TC Engine
ISUZU G-IDSS Diagnostic Service System 10.2023 Download and Installation Service
Lock the wheels.
·Attach wires securely to the engine,and hoist it.
·Do not position yourself underneath the engine while it is being hoisted.
·Never put your hands where they may be pinched or sandwiched.
·The engine is heavy so proceed with the work with all due care.
1.Engine assembly
Hoist the engine slowly,and install it in place.Do this work while taking care to avoid interference with other parts.
·CAUTION:
Never position yourself underneath the engine when it
HCW31BSH055401
Legend
1.Engine foot
is being hoisted
2.Engine mounting
Install the engine mounting,and tighten it to the specified torque.
Front tightening torque:N.m (kgf·m/lb.ft)
Rubber nut Engine side (6) 228 (23.2/168)
Chassis side 113(11.5/83)
(2)
Bracket Frame side (5) 157(16.0/116)
HCW31BSH055401
Legend
1. Engine foot
2. Nut (chassis side)
3. Bracket
4. Frame
5. Bolt (frame side)6. Nut (engine side)
Chassis side 113(11.5/83)
Rear tightening torque:N.m(kgf.m/lb.ft)
Rubber bolt
Engine side(1) 490(50.0/362)
Chassis side (2 157(16.0/ 116)
3.Fuel hose
Install the IN and OUT of the fuel hose.
4.Ground wire
Connect the starter ground wire (1)to the frame.
5.Shift selector rod
6.Engine speed sensor connector
7.Power steering pump
Install the power steering pump,and tighten it to the specified torque.
Tightening torque: 39N·m(4.0kgf·m/29lb·ft)
Install the suction pipe and governor pipe of the air
compressor.
8.EGR valve air hose
9.Air compressor hose
10.Air cylinder hose
11.Sub tank hose
12.Engine harness connector
Connect the connectors securely.
13.Oil pressure switch
14.Dual thermo sensor connector
15.Starter wires
16.Generator connector
17.A/C compressor
Install the A/C compressor,and tighten it to the specified torque
04.2023 ISUZU E-IDSS Diagnostic Software Download and Installation Service
Tightening torque 20N·m(2.0kgf·m/14|b·ft))
Install the A/C compressor belt, harness
connectors and gas pipe clips.
Adjust the belt tension.(For details on adjusting
the belt tension,refer to the section on inspections and maintenance.)
18.Cab back member
Install the cab back member,and tighten it to the specified torque
Tightening torque: 155N·m(15.8kgf·m/114lb·ft))
Install the oil pipe (2)for tilting the cab.
Connect the air hose and its connectors to the cab back member.
Install the oil tank (1)of the power steering pump. Install the cab back member noise cover (2).
Purge the air in the cab tilt pump.
ISUZU IDSS MX2-T Diagnostic Adapter System Support G-IDSS/US-IDSS/E-IDSS(Included DHL Shipping
19.Exhaust pipe front and exhaust brake
Install the exhaust pipe front (1)and exhaust brake (3),and tighten it to the specified torque.
Install the heat protector (2).
HCW31BSH054101

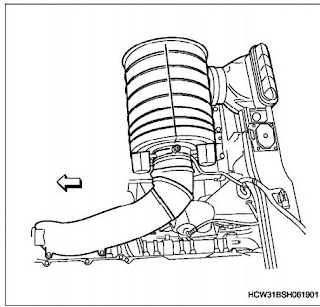

20.Air cleaner assembly
Install the air cleaner assembly,and connect the air duct and its connectors.
21.Mud guard
22.Side noise cover
23.Oil filler pipe
Tightening torque: 59N·m(6.0kgfm/43lb·ft))
24.Oil level gauge
25.Radiator hose
After installing the air purging hose,upper hose and lower hose,connect the harness.
HCW31BSH053601
26.Inter-cooler hose
27.Pour in the cooling water.

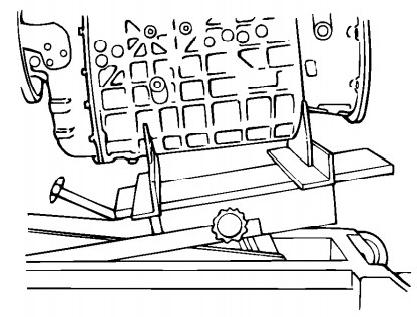

28.Transmission assembly
For details on installing the transmission assembly, refer to the chapter on removing and installing the transmission.
HCW31BSH055B0
11.2023 ISUZU US-IDSS Diagnostic Service II Truck Diagnostic System Download and Installation
29.Exhaust pipe
30.Battery cable
Connect the battery cable (1).
Inspections and adjustments after installation
·Supply and check the engine oil and cooling water.
·Inspect and check the idling speed.
·Inspect and check the clutch pedal play.
·Adjust the pulling reserve of the parking brake
lever.
·Clear away the rags from around the engine and
any other items that may be snagged by the
engine parts,and wipe off any engine oil and other
substances on the engine.
·Check that the shift lever is at the neutral position,
call out to warn any persons in the vicinity,start up
the engine using the starter switch of the driver's
seat,and check that the engine starts up and stops
properly.
·Check for leaking oil or water from the engine
parts.
·Check for leaking fuel,oil and air from the pipe
connections.
·Check that no unusual sounds are heard from any
of the parts
·Check that no exhaust gas is leaking and that the
exhaust gas is colorless.
·After stopping the engine,inspect whether the oil
and cooling water are within the prescribed levels.
·Go for a test drive,and check that there are no
problems.
